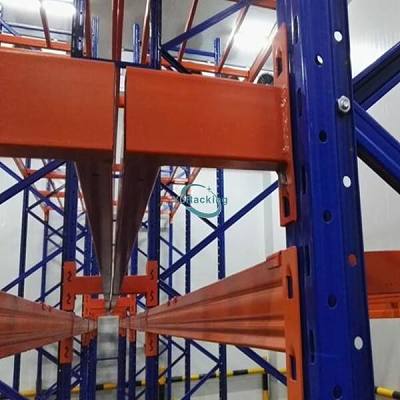

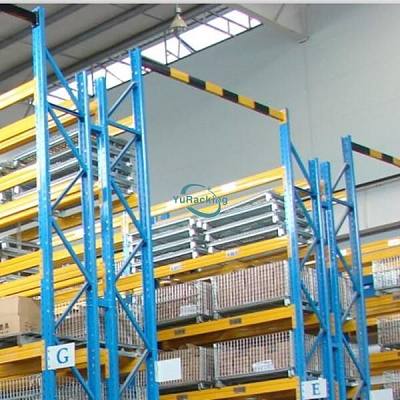

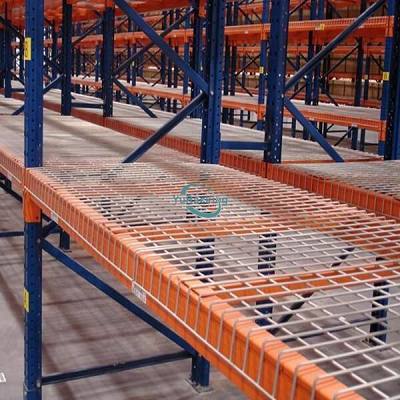

Double Deep Pallet Racking

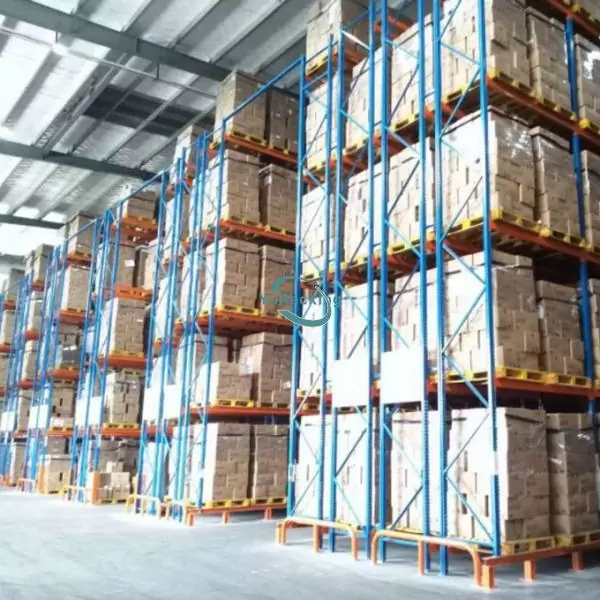

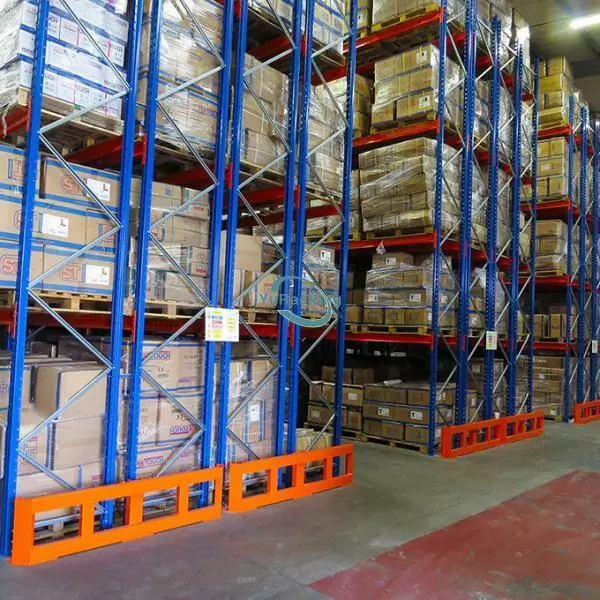

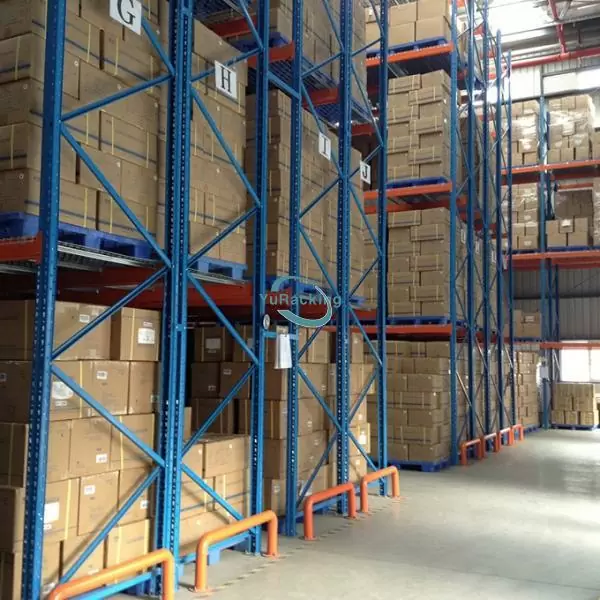

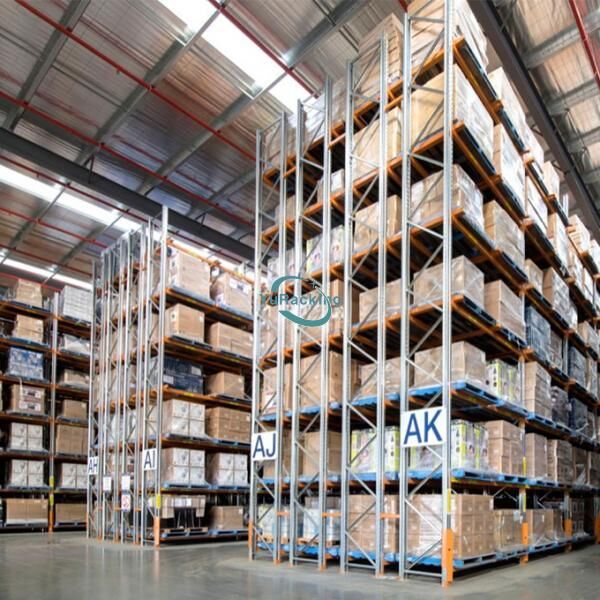

What is double deep YuRacking? Double Deep Pallet Racking System is a high-density warehouse storage solution. YuRacking double deep pallet racks are usually arranged in four lines (two back-to-back bays) together. Our double deep pallet racking system needs less aisles and make the maximum use of the warehouse spaces, increasing the space using rate up to 70%.


How to use double deep pallet racking system? Double deep pallet rack storage system needs the special deep reach forklift to pick the pallets. This kind of double racking needs less aisled in the warehouse floor, so you need to cooperate with a special forklift designed for the double deep racking system to make your warehouse management much more quickly. Using double deep racking forklift can make the high density, cost effective double deep racking solution is realizable.


What are double deep pallet rack applications? Double deep pallet racks are widely used in paper industry, plastic products industry, tobacco, food and beverage, packaging and other industries.


What warehouses do double deep pallet racks applicable for?

  • The product warehouses with more than one pallet per special storage unit.

  • Warehouses that store products of the same type.

  • Warehouses where the stored goods have a medium to long-term service life (not recommended for storing products with a short shelf life, because the double-depth racking is a first-in, last-out type of racking system).

  • Warehouses with high performance inventory management system.

  • Warehouses that need to balance accessibility, selectivity, and increased storage capacity per unit load.

  • FMCG warehouses and cold storage racking warehouses are mostly used for bulk shipments.

  • double deep pallet racks are also often used in high-level warehouses.



Get Quote

Advantages of Double Deep Pallet Racking

  • Widely used, good selectivity;

  • Fewer Aisle, save storage space greatly;

  • High density pallet racking design, cost effective solution;

  • Easy to assemble and install;


Double Deep Pallet Racking Specifications


MaterialSteel Q235
DimensionsLength: 1800/2300/2500/2700/3000/3300/3600mm
Width: double deep
Height: 2000-22,000mm
Thickness Range1.5mm-3.0mm
Load Capacity1000-4000 kg per layer

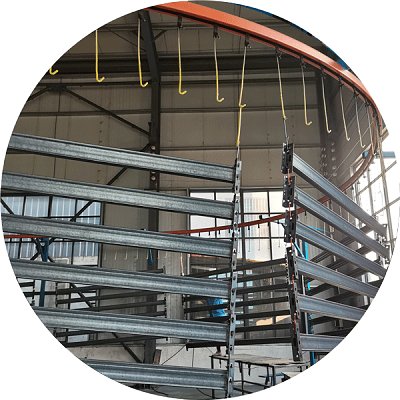

Surface MaterialsPowder Coated or Galvanized
BenefitsAnti-rust, Corrosion-protection
Forklift TypesSpecial forklift-deep reach to the double deep pallets
Sample/OEM/ODMAvailable

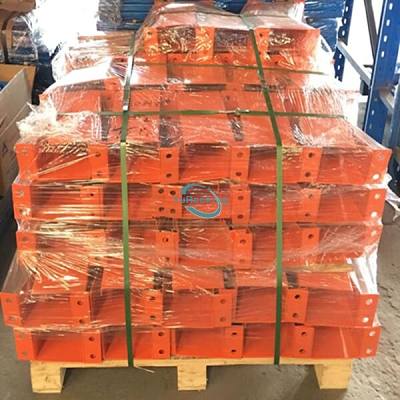

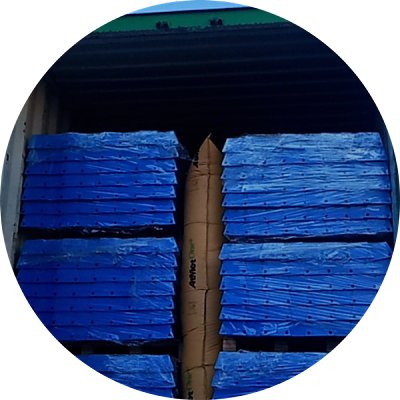

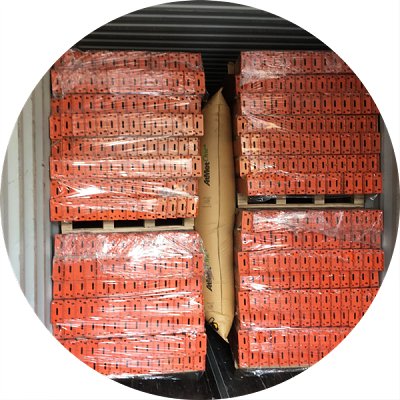

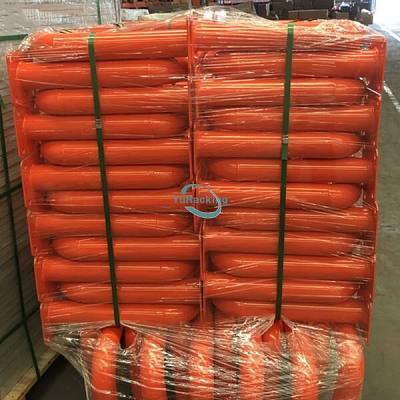

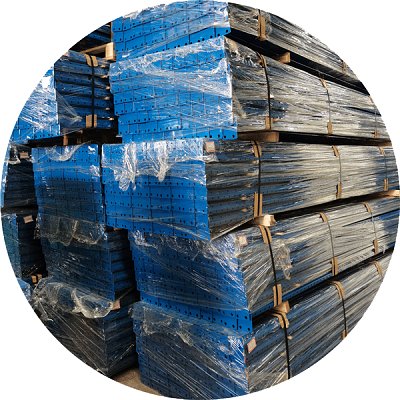

Overseas Pallet PackingPost: pallet size: L=upright height*W1.1m*H1.1m-1.2m (GP/HQ container, total weight is below 2.5T/pallet)
Bracer: pallet size: L=bracer length*W1.1m*H1.1m

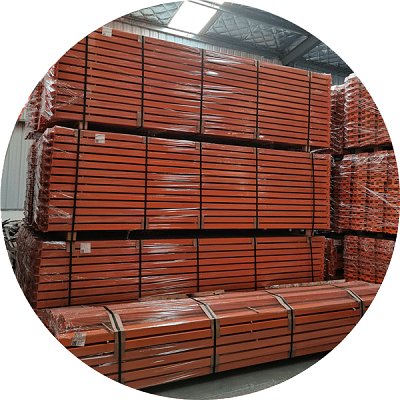

Beam: pallet size: L=beam length*W1.1m*H1.1m-1.25m (GP/HQ container)
Delivery Time15 days after deposit
All sizes can be customized as your demands

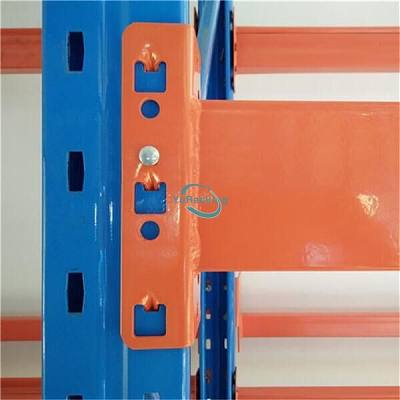

Double Deep Pallet Racking Beam Load Capacity

Box Beam Length (mm)
  Section (mm)

Loading (Kg)

 1500mm 2300mm 2400mm2500mm2700mm2800mm3000mm3300mm
80*50*1.5mm3400Kg1400Kg1300Kg1200Kg900Kg800Kg700Kg600Kg
100*50*1.5mm5600Kg2500Kg2300Kg1800Kg1500Kg1400Kg1250Kg1000Kg
120*50*1.5mm8900Kg3700Kg3500Kg2700Kg2300Kg2100Kg1850Kg1500Kg
140*50*1.5mm12000Kg5300Kg5000Kg3800Kg3300Kg3100Kg2700Kg2200Kg
160*50*1.5mm13500Kg7400Kg6800Kg5300Kg4500Kg4200Kg3600Kg3000Kg
140*50*2.0mm12800Kg7000Kg6500Kg5000Kg4300Kg4000Kg3500Kg2900Kg
160*50*2.0mm15000Kg8000Kg7400Kg6900Kg6000Kg5500Kg4500Kg4000Kg

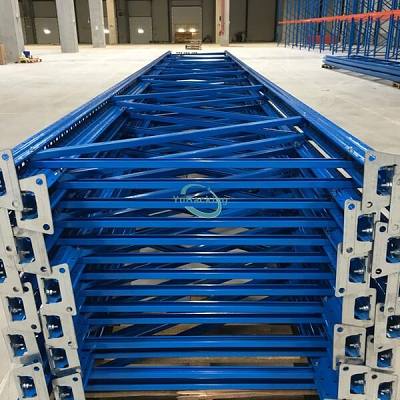

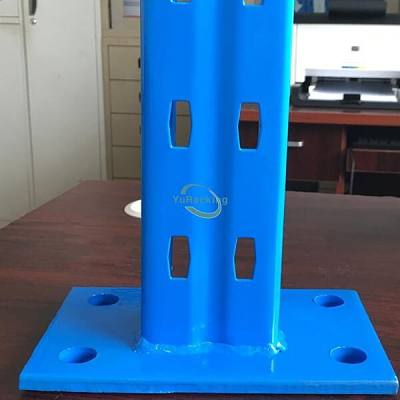

Double Deep Pallet Racking Upright Frame Load Capacity

Upright Section Size (mm)

Beam Space(mm)

 Loading(kg)

80*60*2.090*60*2.090*70*2.0100*70*2.0100*75*2.0120*75*2.0120*95*2.0120*95*2.5
≧1500mm≦5000Kg≦7000Kg≦8500Kg≦10500Kg≦12000Kg≦14500Kg≦16500Kg≦18500Kg
1400-1500mm≦6000Kg≦8000Kg≦9000Kg≦11500Kg≦13500Kg≦15500Kg≦18000Kg≦20000Kg
≦1400mm≦8000Kg≦9000Kg≦10000Kg≦12500Kg≦14500Kg≦17500Kg≦19500Kg≦22000Kg
