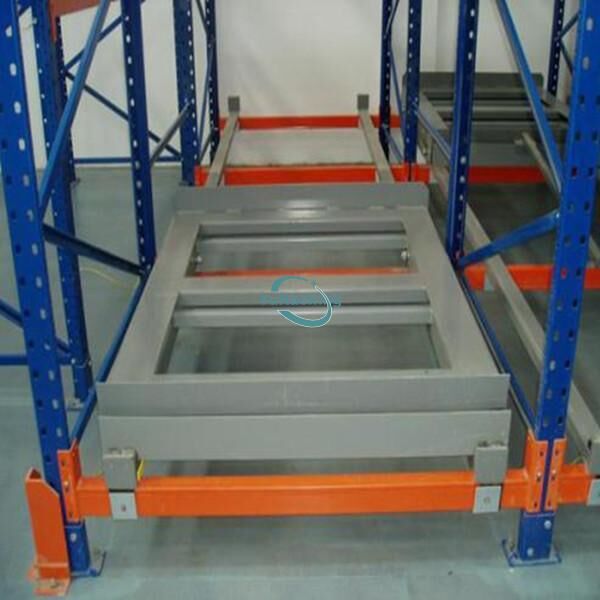

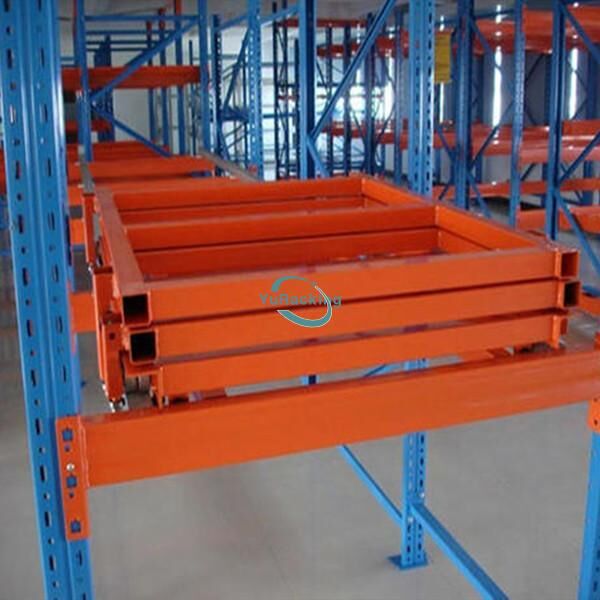

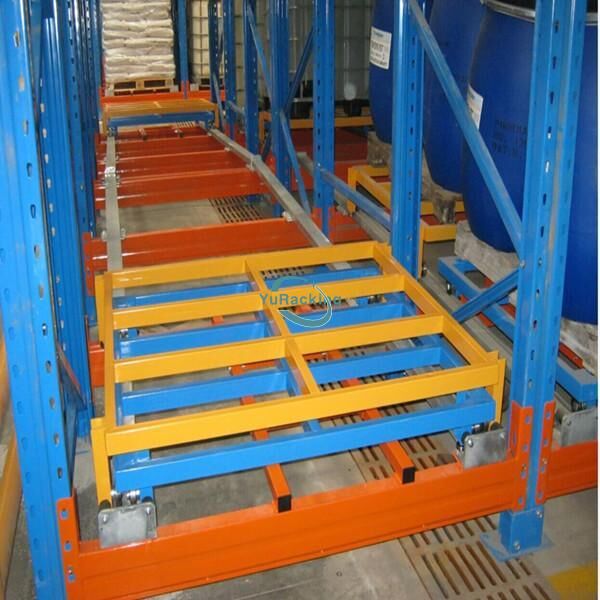

Push Back Pallet Racking

Push Back Pallet Racking is also a high-density solution, similar as the drive-in racking system, no aisle needs in a whole racking area, one row next to another row, moreover forklift no need go into the depth direction, the forklift operator just put the pallets on the push back small cart, when put the second one, as the gravity effects, the first pallets will go into the lane automatically along the rail.


YuRacking also has push back pallet racking system for sale: not used so widely as the conventional pallet racking types, but still used in some industrial or warehouse size limitation, as its high density, high cost-effective advantages.

Get Quote

The Features of Push Back Pallet Racking

  • Fewer Aisle, space saving;

  • Better 5 pallets position deep at most;

  • Forklift no need go into the racking area;

  • Labor saving, easy to maintain.


The Specification of Push Back Pallet Racking

Material

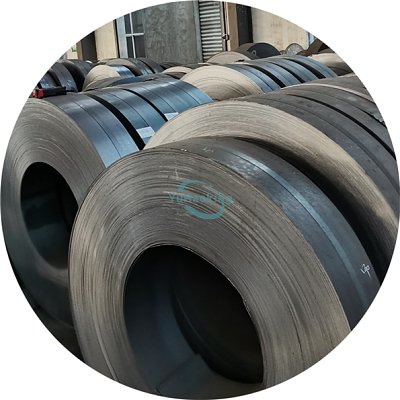

Steel Q235

Size

Customized as your requirement

Thickness

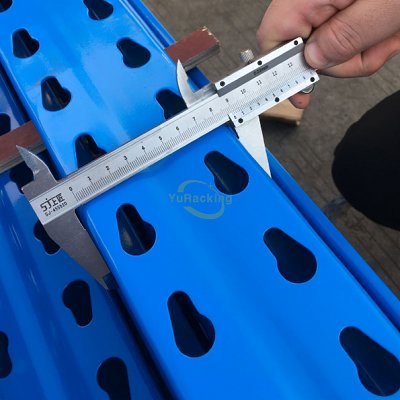

1.5mm-3.0mm

Load Capacity

1000-1500kg/pallet; 6000-18000kg/bay

Surface

Powder Coated or Galvanized

Feature

Anti-rust, Corrosion-protection

Aisle Size

Fewer Aisle

Forklift Type

Conventional forklift fixes the racking top pallets height

Sample/OEM/ODM

Available

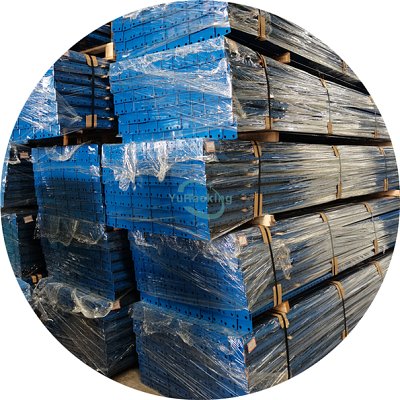

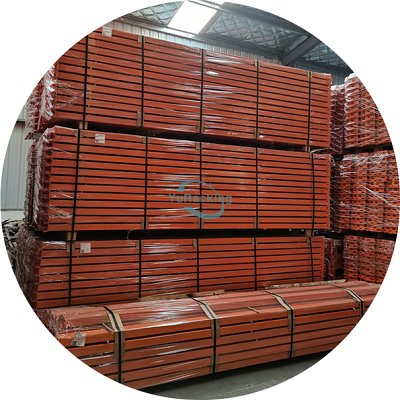

Packing

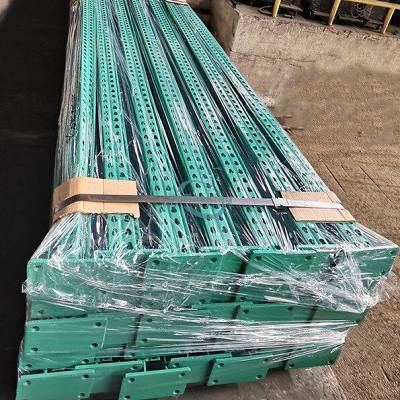

Post: pallet size: L=upright height*W1.1m*H1.1m-1.2m (GP/HQ container, total weight is below 2.5T/pallet)

Bracer: pallet size: L=bracer length*W1.1m*H1.1m

Delivery Time

15 days after deposit

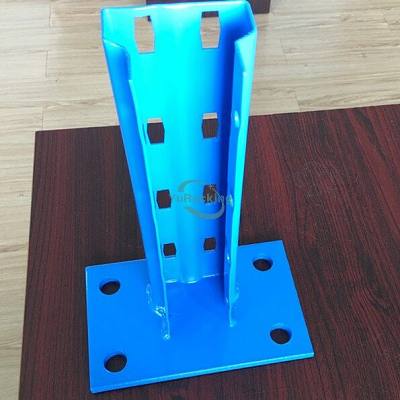

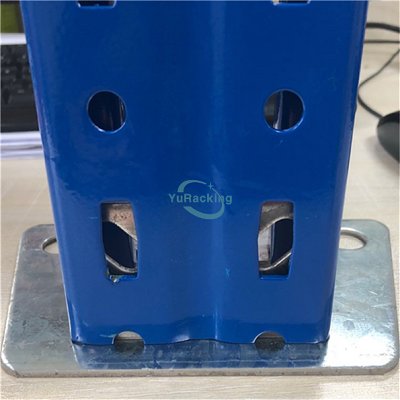

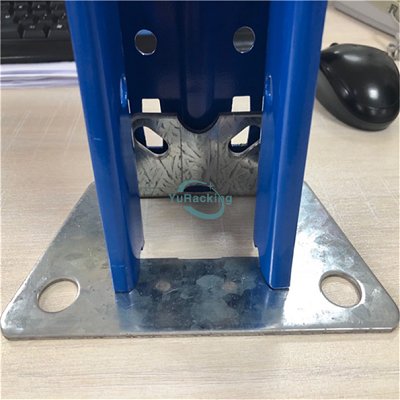

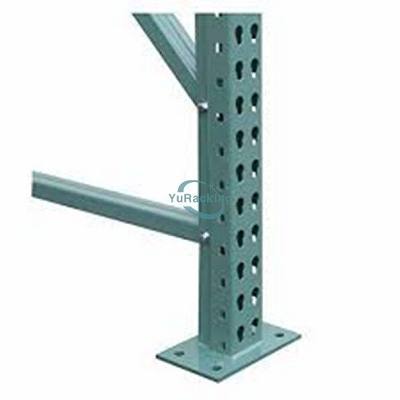

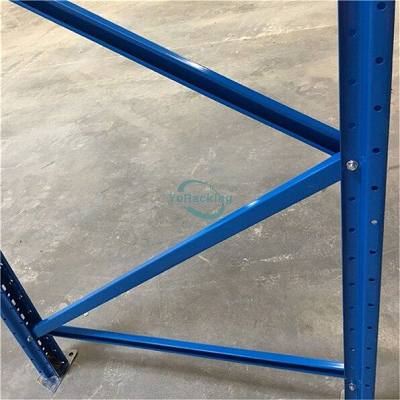

Push Back Pallet Racking Upright Frame Load Capacity

Upright Section Size (mm)
BeamSpace (mm)Loading(kg)80*60*2.090*60*2.090*70*2.0100*70*2.0100*75*2.0120*75*2.0120*95*2.0120*95*2.5
≧1500mm≦5000Kg≦7000Kg≦8500Kg≦10500Kg≦12000Kg≦14500Kg≦16500Kg≦18500Kg
1400-1500mm≦6000Kg≦8000Kg≦9000Kg≦11500Kg≦13500Kg≦15500Kg≦18000Kg≦20000Kg
≦1400mm≦8000Kg≦9000Kg≦10000Kg≦12500Kg≦14500Kg≦17500Kg≦19500Kg≦22000Kg
